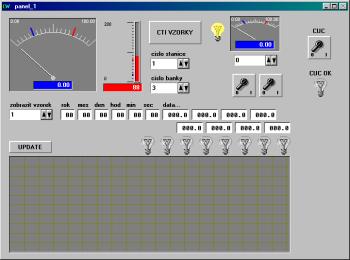

Vzorky - vyčítání historických databank


Vyčtení historických databank (vzorky), seznam a popis obslužných kanálů:

Kanál č.
Typ a směr
Popis
60000
shortcard output
číslo stanice, ze které se budou číst vzorky (dle pořadí sekcí [STATION] v .PAR souboru)
60001
shortcard output
číslo banky (1 až 3)
60002
cardinal output
číslo vzorku (1-528), které se objeví na kanálech 60004-60017 a 60100-60291
60003
boolean output
změna způsobí vynulování vzorků v paměti PC a jejich načtení podle nastavení kanálu 60000-2
60004
shortcard input
rok (poslední dvoučíslí)
60005
shortcard input
měsíc
60006
shortcard input
den
60007
shortcard input
hodina
60008
shortcard input
minuta
60009
shortcard input
sekunda
60010-60017
longreal input
hodnoty vzorků (8 real.průběhů)
60018
boolean input
probíhající čtení vzorků
60021
boolean output
změna provede zápis aktualních vzorků do souboru .CUC
60022
boolean bidirectional
čtení: true = poslední zápis .CUC byl OK, zápis: false = pro shození příznaku zápisu
60100-60291
boolean input
hodnoty vzorků (192 binárních průběhů, 24bi na 1ad)
60292
boolean output
log.1=zapnutí / log.0=vypnutí přenosu vzorků z Promos-RT-40, kanálem je nutno určit, že stanice je typu RT40, neboť tyto mají vzorky umístěné v jiných bankách.

Zápisem do kanálu 60003 bude do fronty požadavků pro čtení vloženo celkem 88 zpráv, kterými bude postupně vyčtena příslušná oblast historické databanky. Vzhledem k většímu počtu těchto zpráv může celé vyčtení trvat i několik minut (dle způsobu připojení stanice a komunikační rychlosti).

Doporučuje se vytvoření programu v aplikaci CW, který způsobí zápis do ovladače pro vyčtení historie, pozastavení veškeré jiné komunikace s jinými datovými body všech stanic a následné monitorování kanálu 490, což je aktuální počet požadavků pro čtení. Hodnota tohoto kanálu se bude postupně zmenšovat do nuly. Pak je již celá banka vyčtena a je možné ji dále zpracovat (kanály 60004-60291).

CUC soubory (kompatibilní s programem WZORKY)


Cestu .CUC souboru lze zadat do proměnné v .PAR souboru, sekce [GLOBAL], proměnná CUC_PATH. Způsob zadávání je shodný, jako u všech textových proměnných.
např.
[GLOBAL]
  CUC_PATH "C:\Control Web 2000\Application\Data\CUC" ""
END
Název souboru bude vytvořen podle poslední vyčtené banky vzorků, ve tvaru AaBYMMDD.CUC, kde
    Aa = adresa stanice, 01-99, nebo
         pokud je vetší než 100,
         tak se použije nasledující vzorec:
              od adresy se odečte 100.
              A=písmeno od "A", určující po odečtení desítky
              a=jednotky po odečtení
         např. adresa 137: 137-100=37, tedy 3 odpovídá C a zbyde 7, tedy C7.

    B = číslo banky (1-4)
    Y = poslední číslice roku
    MM = měsíc
    DD = den

Jednoduchá ukázka aplikace pro vyčítání historických bank

Soubor RT_KPS1.PAR

[COM]
  DRIVER SYSTEM 1
  IRQ 4
  BASE $03F8
  BAUD 4800
  BITS 8
  PARITY NONE
  STOP 1
  OPTIONS 0 { RS232 }
  BUFFER_SIZE 1024
END

[GLOBAL]
  PREFIX $E1 $5C
  SUFFIX NONE
  PRESUFFIX NONE
  ADDRESS $00
  ANSWER_TIME 3.0
  SILENCE_WAIT 500
  RTS_TIME_ON 300
  RTS_TIME_OFF 200
  DEF_ANALOG_IN_ADDR $D61A
  IDLE_TIME 10
  STOP_SELF_READING ON
END

[STATION]
ORIGINAL_CHANNELS
ADDRESS 1
RETRANSLATION 01
NAME "KPS1" ""
NUM_BINAR_IN 96
NUM_BINAR_OUT 24
NUM_ANALOG_IN 64
NUM_COUNTER_IN 8
NUM_MEMORY_IN 0
NUM_MEMORY_OUT 48
BINAR_IN_XOR NONE
BINAR_OUT_XOR NONE
DEF_ANALOG_IN_ADDR FROM_GLOBAL
DEF_MEMORY_IN NONE
DEF_MEMORY_OUT
1   $3101   { tin1 - posun UT                                                       }
2   $3102   { c971 - sklon UT                                                       }
3   $3201   { tin2 (rezerva)                                                        }
4   $3202   { c972 (rezerva)                                                        }
5   $3301   { tin3 (rezerva)                                                        }
6   $3302   { c973 (rezerva)                                                        }
7   $0101   { tup1 - pozad. teplota TUV                                             }
8   $0201   { tup2 - pozad. dP TV                                                   }
9   $0021   { ad33 - cas limit doplnovani                                           }
10  $0029   { ad41 - max. TAVE1 - cas otev. pohonu UT z 0 do 100 % [sec]            }
11  $0023   { ad35 - min. TVPM1 - minimum hor. limitu teploty TV                    }
12  $0025   { ad37 - max. TVPM1 - maximum hor. limitu teploty TV                    }
13  $002B   { ad43 - max. TAUV1 - cas otev. pohonu TUV z 0 do 100 % [sec]           }
14  $0000   { (rezerva)                                                             }
15  $0000   { (rezerva)                                                             }
16  $0000   { (rezerva)                                                             }
17  $0000   { (rezerva)                                                             }
18  $0000   { (rezerva)                                                             }
19  $0000   { (rezerva)                                                             }
20  $0000   { (rezerva)                                                             }
21  $0020   { ad32 - prevod ctc4 (rezerva)                                          }
22  $001E   { ad30 - prevod ctc3 (rezerva)                                          }
23  $001C   { ad28 - prevod vodomeru TV (Litr/impulz)                               }
24  $001A   { ad26 - prevod vodomeru SV (Litr/impulz)                               }
25  $310A   { PRZD1 - zacatek denniho utlumu UT                                     }
26  $310B   { PRKD1 - konec                                                         }
27  $310C   { PRZT1 - zacatek tydenniho utlumu UT                                   }
28  $310D   { PRKT1 - konec                                                         }
29  $310E   { DTIN1 - hodnota utlumu UT (st.C)                                      }
30  $3139   { TVPM1 - limit max. teploty UT                                         }
31  $3106   { TAVE1 - cas pohonu - viz. MO10                                        }
32  $3103   { TVP1 - pozad. teplota TV                                              }
33  $010A   { PUZD1 - zacatek denniho utlumu TUV                                    }
34  $010B   { PUKD1 - konec                                                         }
35  $010C   { PUZT1 - zacatek tydenniho utlumu TUV                                  }
36  $010D   { PUKT1 - konec                                                         }
37  $010E   { DTUP1 - hodnota utlumu TUV (st.C)                                     }
38  $0C03   { KTUV1 - signal otevreni pohonu TUV (0.0 / 1.0) -> cist pres MI ?      }
39  $0C02   { TAUV1 - viz MO13                                                      }
40  $E1B4   { TUPP1 - zadana teplota TUV                                            }
41  $020A   { PUZD2 - zacatek denniho utlumu dP-TV                                  }
42  $020B   { PUKD2 - konec                                                         }
43  $020C   { PUZT2 - zacatek tydenniho utlumu dP-TV                                }
44  $020D   { PUKT2 - konec                                                         }
45  $020E   { DTUP2 - hodnota utlumu dP-TV (kPa)                                    }
46  $0C06   { KTUV2 - signal max. poz. freq. FM/dP-TV (0.0 / 1.0) -> cist pres MI ? }
47  $0C05   { TAUV2 - cas narustu freq. FM z 0 do 100 % (sec)                       }
48  $E1B7   { TUPP2 - zadana hodnota dP-TV (kPa)                                    }
DEF_MEMORY_END
DEF_COUNTER_IN
  1 YEAR 1.0 0
  2 YEAR 1.0 0
  3 REAL 1.0 0
  4 REAL 1.0 0
  5 REAL 1.0 0
  6 REAL 1.0 0
  7 REAL 1.0 0
  8 REAL 1.0 0
DEF_COUNTER_END
END

Soubor VZORKY.DMF

begin
   1 -  96  boolean input
  97 - 192  boolean output
 193 - 256  real input
 257 - 304  real input
 305 - 404  real bidirectional
 405 - 434  real input
 450 - 459  real input
 460 - 463  boolean output
 464 - 465  boolean input
 466 - 470  boolean bidirectional
 471        boolean output
 472        boolean output
 473 - 499  real input
 60000 shortcard output
 60001 shortcard output
 60002 cardinal output
 60003 boolean output
 60004 - 60009 shortcard input
 60010 - 60017 real input
 60021 boolean output
 60022 boolean input
 60100 - 60291 boolean input
 65533 - 65534  real output
 65535  boolean output
end.

Soubor VZORKY.CW

const
  max_vz = 528;
end_const;

var
  vz_update = boolean, false;
  index = integer, 1;
end_var;

driver
  rt = CWDRT485.DLL, VZORKY.DMF, RT_KPS1.PAR;
end_driver;

channel
  ad1 = real, 193, rt, input;
  ad41 = real, 233, rt, input;
  ad41_write = real, 314, rt, bidirectional, 0;
  bo1 = boolean, 97, rt, output, false;
  bo2 = boolean, 98, rt, output, false;
  fronta = real, 490, rt, input;
  vz_ad =  array[ 60010..60017 ] of real, rt, input;
  vz_banka = shortcard, 60001, rt, output, 0;
  vz_bi =  array[ 60100..60291 ] of boolean, rt, input;
  vz_cuc = boolean, 60021, rt, output, false;
  vz_cuc_ok = boolean, 60022, rt, input;
  vz_day = shortcard, 60006, rt, input;
  vz_hour = shortcard, 60007, rt, input;
  vz_min = shortcard, 60008, rt, input;
  vz_month = shortcard, 60005, rt, input;
  vz_polozka = cardinal, 60002, rt, output, 0;
  vz_read = boolean, 60003, rt, output, false;
  vz_sec = shortcard, 60009, rt, input;
  vz_stanice = shortcard, 60000, rt, output, 0;
  vz_year = shortcard, 60004, rt, input;
end_channel;

timer

end_timer;

instrument

  window panel panel_1;
    timer = 1;
    owner = background;
    position = 14, 29, 713, 509;
  end_panel;

  label id_6;
    owner = panel_1;
    position = 631, 122;
    font = SYSTEM, 10, bold;
    text = 'CUC OK';
  end_label;

  indicator xx;
    timer = 1;
    owner = panel_1;
    position = 636, 138;
    expression = vz_cuc_ok;
  end_indicator;

  label id_6;
    owner = panel_1;
    position = 638, 35;
    font = SYSTEM, 10, bold;
    text = 'CUC';
  end_label;

  switch id_11;
    owner = panel_1;
    position = 630, 52, 48, 48;
    output = vz_cuc;
  end_switch;

  control set_index;
    owner = panel_1;
    position = 478, 91, 89, 22;
    output = ad41_write;
    mode = count_box;
    dec_places = 0;
    receivers = xx;
  end_control;

  meter id_1;
    timer = 1;
    owner = panel_1;
    position = 470, 11, 103, 73;
    expression = ad41;
    content = med;
    colors
      low_limit = lblue;
    end_colors;
  end_meter;

  switch id_11;
    owner = panel_1;
    position = 530, 130, 48, 48;
    output = bo2;
  end_switch;

  switch id_11;
    owner = panel_1;
    position = 475, 130, 48, 48;
    output = bo1;
  end_switch;

  indicator xx;
    timer = 1;
    owner = panel_1;
    position = 560, 257;
    expression = vz_bi[ 60107 ];
  end_indicator;

  indicator xx;
    timer = 1;
    owner = panel_1;
    position = 520, 257;
    expression = vz_bi[ 60106 ];
  end_indicator;

  indicator xx;
    timer = 1;
    owner = panel_1;
    position = 480, 257;
    expression = vz_bi[ 60105 ];
  end_indicator;

  indicator xx;
    timer = 1;
    owner = panel_1;
    position = 440, 257;
    expression = vz_bi[ 60104 ];
  end_indicator;

  indicator xx;
    timer = 1;
    owner = panel_1;
    position = 400, 257;
    expression = vz_bi[ 60103 ];
  end_indicator;

  indicator xx;
    timer = 1;
    owner = panel_1;
    position = 360, 257;
    expression = vz_bi[ 60102 ];
  end_indicator;

  indicator xx;
    timer = 1;
    owner = panel_1;
    position = 320, 257;
    expression = vz_bi[ 60101 ];
  end_indicator;

  indicator xx;
    timer = 1;
    owner = panel_1;
    position = 280, 257;
    expression = vz_bi[ 60100 ];
  end_indicator;

  switch id_2;
    owner = panel_1;
    position = 15, 268, 88, 25;
    output = vz_update;
    mode = text_button;
    true_text = 'UPDATE';
    false_text = 'UPDATE';
    receivers = prg_update;
    mono = 0.1, true;
  end_switch;

  chart zobr_vz;
    owner = panel_1;
    position = 15, 299, 579, 200;
    mode = flow_graph;
    low_limit = 0;
    high_limit = 100;
    history = 528;
    dec_places = 1;
    h_grid = 9;
    v_grid = 19;
    item
      expression = 10;
      color = white;
    end_item;
    item
      expression = 20;
      color = lyellow;
    end_item;
    item
      expression = 30;
      color = lmagenta;
    end_item;
    item
      expression = 40;
      color = lred;
    end_item;
    item
      expression = 50;
      color = lcyan;
    end_item;
    item
      expression = 60;
      color = lgreen;
    end_item;
    item
      expression = 70;
      color = lblue;
    end_item;
    item
      expression = 80;
      color = lgray;
    end_item;
  end_chart;

  meter xx;
    timer = 1;
    owner = panel_1;
    position = 540, 230, 54, 22;
    expression = vz_ad[ 60017 ];
    mode = text_display;
    dec_places = 1;
    font = FIXED, 12, normal;
    mask = '@@@.@';
    colors
      ink = black;
      paper = white;
      value = white;
      low_limit = white;
      high_limit = white;
    end_colors;
  end_meter;

  meter xx;
    timer = 1;
    owner = panel_1;
    position = 480, 230, 54, 22;
    expression = vz_ad[ 60016 ];
    mode = text_display;
    dec_places = 1;
    font = FIXED, 12, normal;
    mask = '@@@.@';
    colors
      ink = black;
      paper = white;
      value = white;
      low_limit = white;
      high_limit = white;
    end_colors;
  end_meter;

  meter xx;
    timer = 1;
    owner = panel_1;
    position = 420, 230, 54, 22;
    expression = vz_ad[ 60015 ];
    mode = text_display;
    dec_places = 1;
    font = FIXED, 12, normal;
    mask = '@@@.@';
    colors
      ink = black;
      paper = white;
      value = white;
      low_limit = white;
      high_limit = white;
    end_colors;
  end_meter;

  meter xx;
    timer = 1;
    owner = panel_1;
    position = 360, 230, 54, 22;
    expression = vz_ad[ 60014 ];
    mode = text_display;
    dec_places = 1;
    font = FIXED, 12, normal;
    mask = '@@@.@';
    colors
      ink = black;
      paper = white;
      value = white;
      low_limit = white;
      high_limit = white;
    end_colors;
  end_meter;

  meter xx;
    timer = 1;
    owner = panel_1;
    position = 511, 203, 54, 22;
    expression = vz_ad[ 60013 ];
    mode = text_display;
    dec_places = 1;
    font = FIXED, 12, normal;
    mask = '@@@.@';
    colors
      ink = black;
      paper = white;
      value = white;
      low_limit = white;
      high_limit = white;
    end_colors;
  end_meter;

  meter xx;
    timer = 1;
    owner = panel_1;
    position = 451, 203, 54, 22;
    expression = vz_ad[ 60012 ];
    mode = text_display;
    dec_places = 1;
    font = FIXED, 12, normal;
    mask = '@@@.@';
    colors
      ink = black;
      paper = white;
      value = white;
      low_limit = white;
      high_limit = white;
    end_colors;
  end_meter;

  meter xx;
    timer = 1;
    owner = panel_1;
    position = 391, 203, 54, 22;
    expression = vz_ad[ 60011 ];
    mode = text_display;
    dec_places = 1;
    font = FIXED, 12, normal;
    mask = '@@@.@';
    colors
      ink = black;
      paper = white;
      value = white;
      low_limit = white;
      high_limit = white;
    end_colors;
  end_meter;

  meter xx;
    timer = 1;
    owner = panel_1;
    position = 331, 203, 54, 22;
    expression = vz_ad[ 60010 ];
    mode = text_display;
    dec_places = 1;
    font = FIXED, 12, normal;
    mask = '@@@.@';
    colors
      ink = black;
      paper = white;
      value = white;
      low_limit = white;
      high_limit = white;
    end_colors;
  end_meter;

  meter xx;
    timer = 1;
    owner = panel_1;
    position = 296, 203, 29, 22;
    expression = vz_sec;
    mode = text_display;
    dec_places = 0;
    font = FIXED, 12, normal;
    mask = '@@';
    colors
      ink = black;
      paper = white;
      value = white;
      low_limit = white;
      high_limit = white;
    end_colors;
  end_meter;

  meter xx;
    timer = 1;
    owner = panel_1;
    position = 261, 203, 29, 22;
    expression = vz_min;
    mode = text_display;
    dec_places = 0;
    font = FIXED, 12, normal;
    mask = '@@';
    colors
      ink = black;
      paper = white;
      value = white;
      low_limit = white;
      high_limit = white;
    end_colors;
  end_meter;

  meter xx;
    timer = 1;
    owner = panel_1;
    position = 226, 203, 29, 22;
    expression = vz_hour;
    mode = text_display;
    dec_places = 0;
    font = FIXED, 12, normal;
    mask = '@@';
    colors
      ink = black;
      paper = white;
      value = white;
      low_limit = white;
      high_limit = white;
    end_colors;
  end_meter;

  meter xx;
    timer = 1;
    owner = panel_1;
    position = 191, 203, 29, 22;
    expression = vz_day;
    mode = text_display;
    dec_places = 0;
    font = FIXED, 12, normal;
    mask = '@@';
    colors
      ink = black;
      paper = white;
      value = white;
      low_limit = white;
      high_limit = white;
    end_colors;
  end_meter;

  meter xx;
    timer = 1;
    owner = panel_1;
    position = 156, 203, 29, 22;
    expression = vz_month;
    mode = text_display;
    dec_places = 0;
    font = FIXED, 12, normal;
    mask = '@@';
    colors
      ink = black;
      paper = white;
      value = white;
      low_limit = white;
      high_limit = white;
    end_colors;
  end_meter;

  meter xx;
    timer = 1;
    owner = panel_1;
    position = 121, 203, 29, 22;
    expression = vz_year;
    mode = text_display;
    dec_places = 0;
    font = FIXED, 12, normal;
    mask = '@@';
    colors
      ink = black;
      paper = white;
      value = white;
      low_limit = white;
      high_limit = white;
    end_colors;
  end_meter;

  control set_index;
    owner = panel_1;
    position = 15, 203, 89, 22;
    output = vz_polozka;
    mode = count_box;
    range_from = 1;
    range_to = 528;
    init_value = 1;
    dec_places = 0;
    receivers = xx;
  end_control;

  label id_6;
    owner = panel_1;
    position = 14, 187;
    font = SYSTEM, 10, bold;
    text = 'zobrazit vzorek     rok    mes   den   hod   min    sec     data...';
  end_label;

  label id_6;
    owner = panel_1;
    position = 305, 132;
    font = SYSTEM, 10, bold;
    text = 'cislo banky';
  end_label;

  control id_5;
    owner = panel_1;
    position = 306, 148, 80, 22;
    output = vz_banka;
    mode = count_box;
    range_from = 1;
    range_to = 3;
    init_value = 3;
    dec_places = 0;
  end_control;

  label id_6;
    owner = panel_1;
    position = 305, 82;
    font = SYSTEM, 10, bold;
    text = 'cislo stanice';
  end_label;

  control id_5;
    owner = panel_1;
    position = 306, 98, 80, 22;
    output = vz_stanice;
    mode = count_box;
    range_from = 1;
    init_value = 1;
    dec_places = 0;
  end_control;

  indicator id_3;
    timer = 1;
    owner = panel_1;
    position = 424, 24;
    expression = fronta > 0;
  end_indicator;

  switch id_2;
    owner = panel_1;
    position = 303, 21, 108, 48;
    output = vz_read;
    mode = text_button;
    true_text = 'CTI VZORKY';
    false_text = 'CTI VZORKY';
  end_switch;

  meter id_1;
    timer = 1;
    owner = panel_1;
    position = 208, 16, 82, 152;
    expression = fronta;
    mode = vertical_bar;
    content = med;
    range_to = 200;
    dec_places = 0;
    colors
      low_limit = lblue;
    end_colors;
  end_meter;

  meter id_1;
    timer = 1;
    owner = panel_1;
    position = 15, 15, 180, 152;
    expression = ad1;
    content = med;
    colors
      low_limit = lblue;
    end_colors;
  end_meter;

  program prg_update;
    begin
      if vz_update then
        index = 1;
        while index <= max_vz do
          set_index.SetValue(index);
          pause 0;
          zobr_vz.SetLineIndexValue(0,index,vz_ad[60010]);
          zobr_vz.SetLineIndexValue(1,index,vz_ad[60011]);
          zobr_vz.SetLineIndexValue(2,index,vz_ad[60012]);
          zobr_vz.SetLineIndexValue(3,index,vz_ad[60013]);
          zobr_vz.SetLineIndexValue(4,index,vz_ad[60014]);
          zobr_vz.SetLineIndexValue(5,index,vz_ad[60015]);
          zobr_vz.SetLineIndexValue(6,index,vz_ad[60016]);
          zobr_vz.SetLineIndexValue(7,index,vz_ad[60017]);
          index = index + 1;
        end;
        zobr_vz.Paint();
        set_index.SetValue(1);
      end;
    end;
  end_program;

end_instrument;
